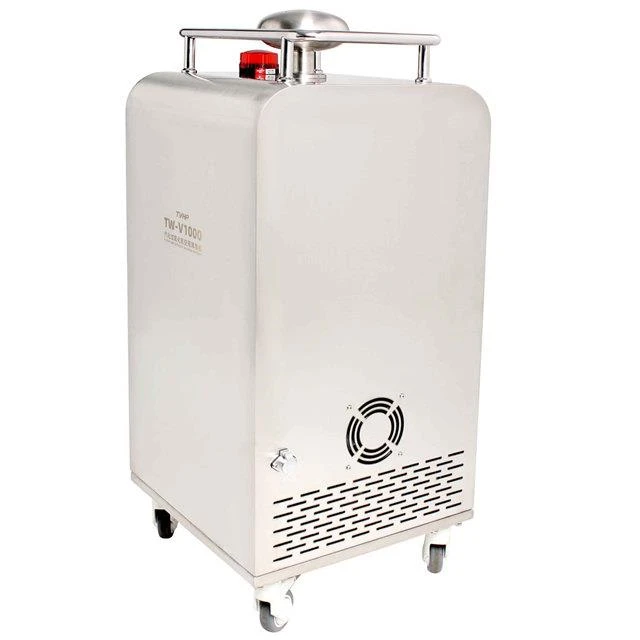

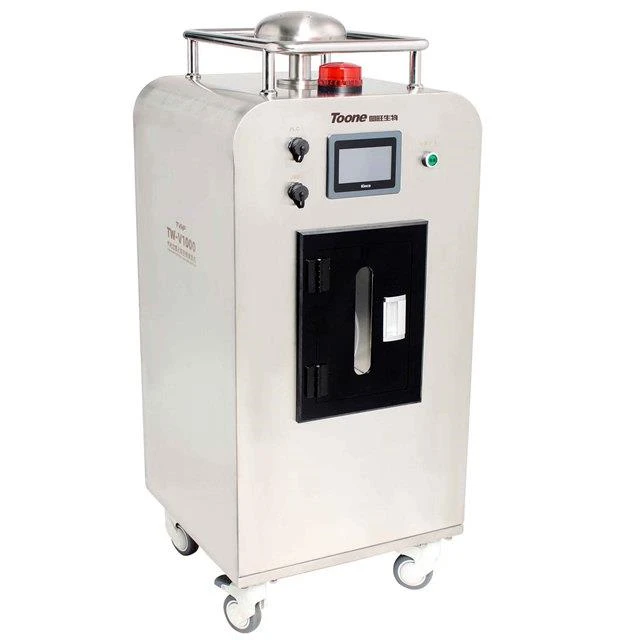

1. Removable design, equipment universal casters, easy to operate
2. Optional VHP concentration real-time online monitoring test
3. Effificient: fast aseptic cycle process, cost saving
4. Safety: normal temperature, non-toxic and no residue, better material compatibility, easier to verify
5. Guangxie: It has Guangxie bactericidal effect, suitable for killing
|
Dimensions: 450x450x 1030mm
|
Weight: 45kg
|
|
Chassis material: 304L stainless steel body
|
Power supply: 220V/50Hz
|
|
Power: 1600W
|

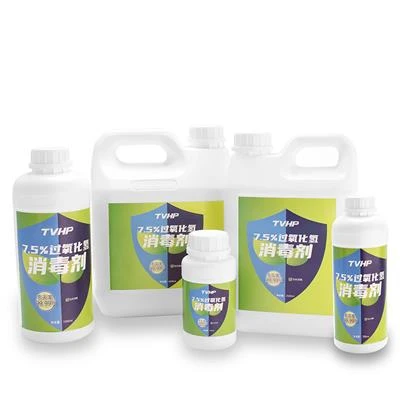

Applicable disinfectant: 7.5% peroxide gas-35% hydrogen peroxide solution
|
|
Liquid storage tank: external (optional250ml, 500ml, 1L, 2.5L, 4L, 5Lsolution bottles) |
|
|
Maximum sterilization volume: 500m3
|
Sterilization level/effect: reach Log6 kill rate
|
|
Method: flflash vaporization
|
Dosing rate: 1ml~16ml/min
|
|
Air flflow: 32m3/h
|
Particle size: <0.5μm
|
|
Sterilant consumption per cubic meter:5ml/m3 Hydrogen peroxide output
|
|
|
Data management
|
Data transmission
|
|

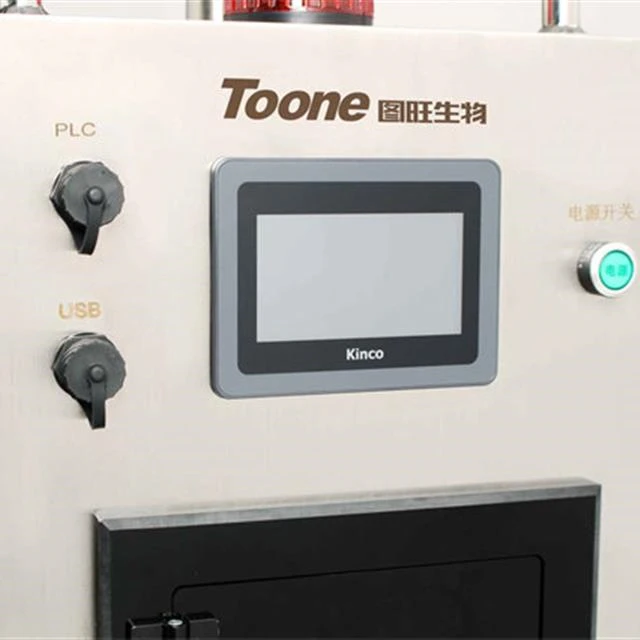

Touch screen size: 4.3 inches
|
Microcomputer intelligent system
|
|
Control system PLC
|
Remote contro
|
|
Appointment function
|

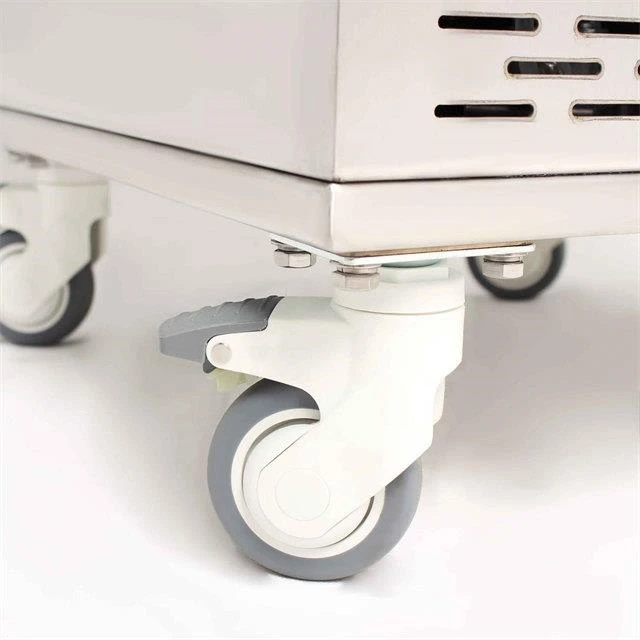

Removable design, equipment universal casters, easy to operate
|
|
Mobile power
|
Vent pipe connection components
|
|
Hydrogen Peroxide Concentration Sensor
|
High effificiency air fifilter
|
|
Hydrogen peroxide decomposition device
|
|
